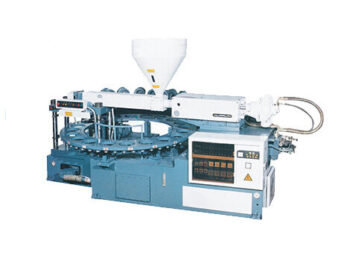

Rotary Type Single Color Sole Injection Machine, GM-6-03

Designed to produce soles for leisure shoes and sports shoes with PVC/TPR, and slippers as well.

CHARACTERS

1. Full automatic computer control. The system can detect the work state of all parts all the time and show the result on screen.
2. Suitable for all kinds of thermoplastic materials, foaming or non-foaming, such as TPR, PVC.
3. Easy to operate without professional person, lots of labors and time saved.
4. Low noise & High speed.
5. Adjustable injecting quantity.

Category:

Description

Parameter

Rotary Type Single Color PVC TPR Sole Injection Machine GM-6-03
Clamping Force 60 tons
Opening Stroke 200mm
Injection Weight 880cm³
Injection Rate 12cm/sec
Mold Number 12-24
Mold size(D*W*H) 500*200*200mm
Dimension(D*W*H) 4300*2100*2200mm
Power 22Kw
Productivity 200 pairs/hour
Dimension(D*W*H) 4300*2100*2200mm
Net weight 4.2 tons
NOTE: The product specification&model is subject to actual contract or quotation if any update.
